Brantner tandem axle with leaf or parabola springs mounted under the axle .

suspended tandem axle for improved liability



The Brantner tandem three-way trailer has a low center of gravity when installing the leaf or parabola springs under the axles.

This allows quiet running characteristics.

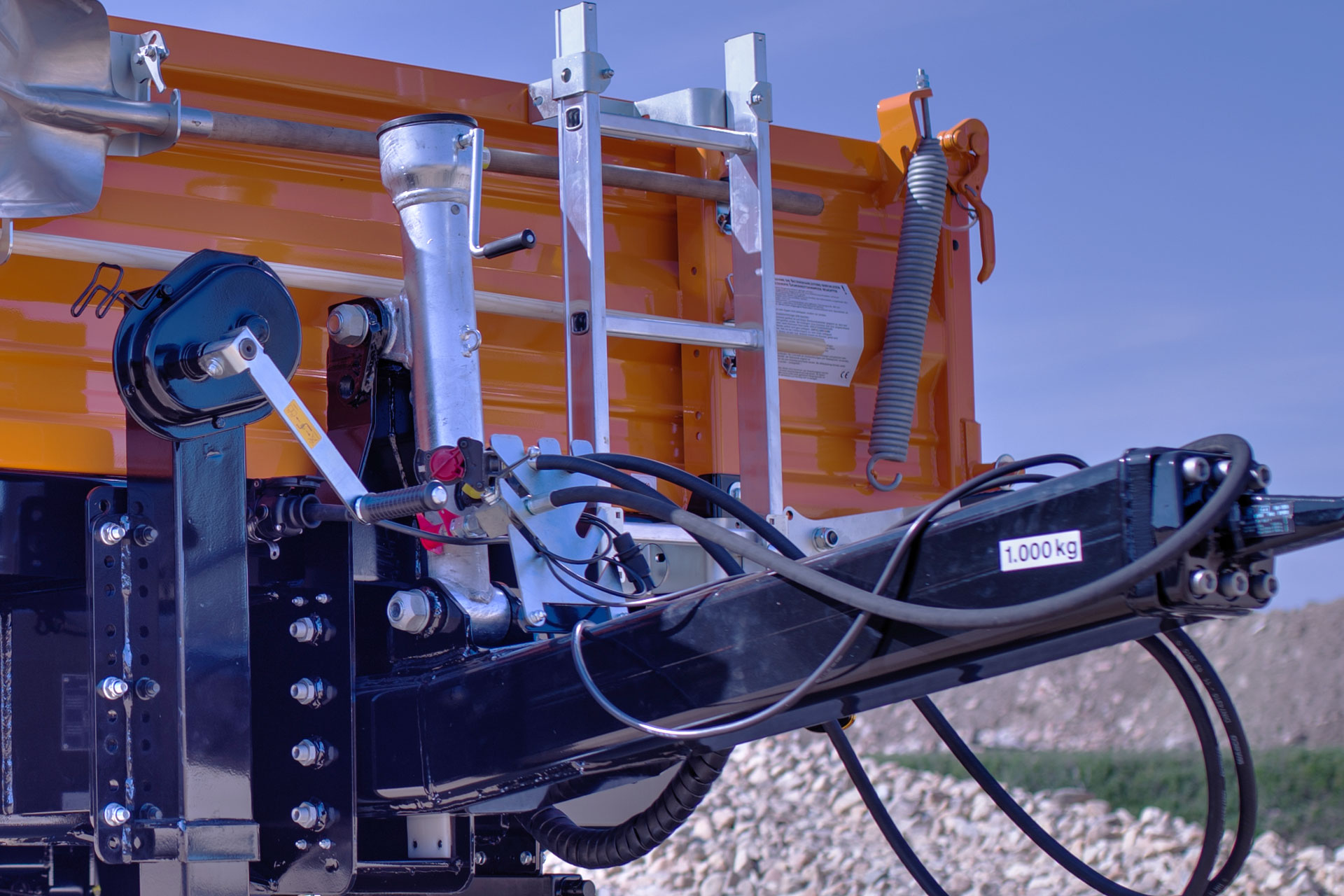

Brantner trailer with adjustable coupling height.

adjustable coupling height



The height of the towing bar is adjustable by jackscrew for about 300 mm. (not with TA 20051 XXL).

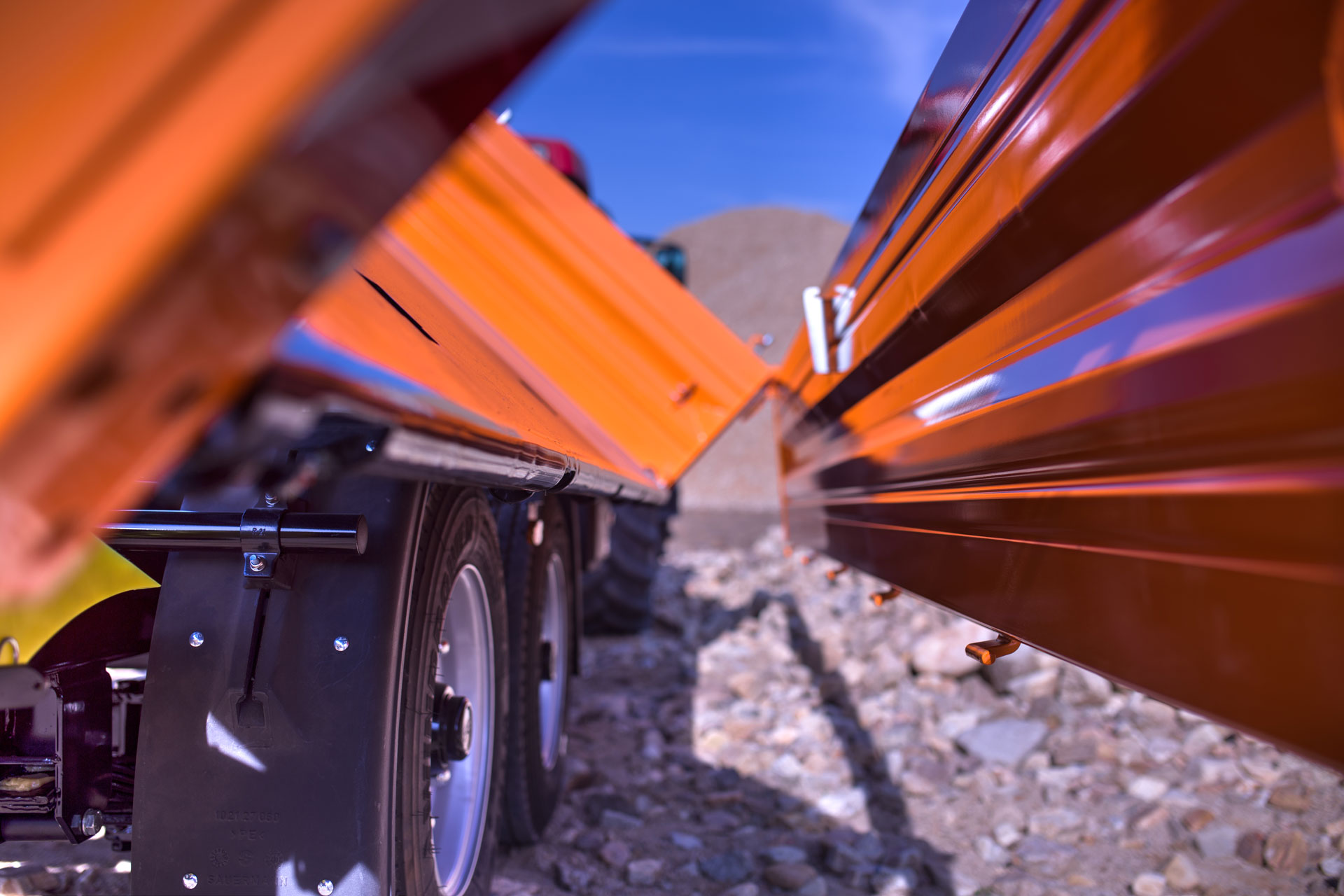

Brantner steel plate base made of one piece by foil seam fusion.

steel plate platform folded from one piece



The steel plate platforms are produced exclusively at the plant in Laa an der Thaya. The manufacturing process is characterized especially by the completely smooth surface. Such a surface can only be achieved by means of foil seam fusion.

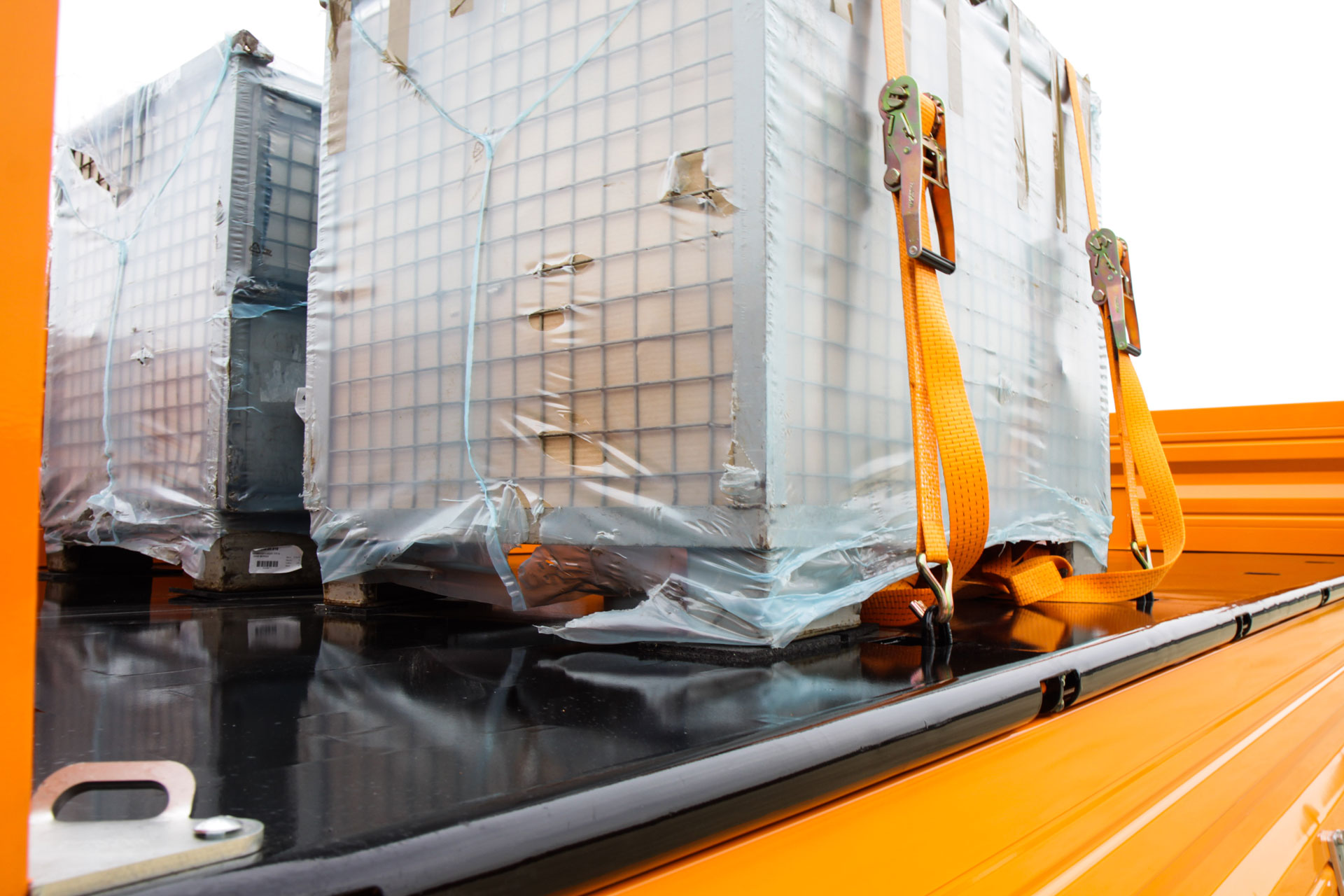

Brantner lashing eyes for perfect load security.

Lashing eyes as per EN 12640 recessed in ground

These lashing eyes as per EN 12640 offer perfect load security. At TA 11045 low-loader and TA 13045 low-loader the 4 pairs (=8 pieces) of lashing eyes are part of the standard equipment. At the TA 20051 XXL low-loader these can be ordered as special equipment.

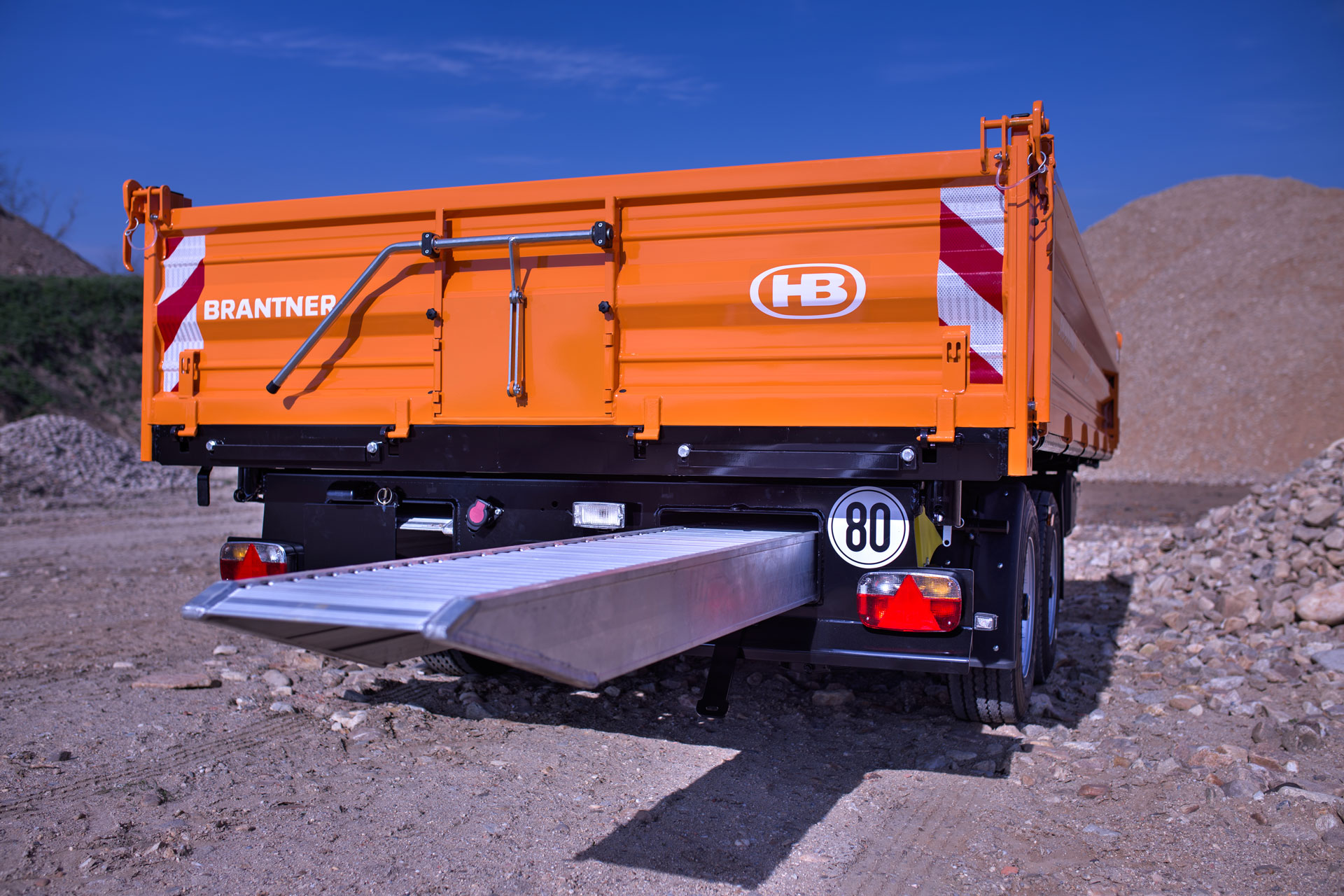

Der Brantner Tieflader mit geschlossenen Einschubkanälen für Aluminium Verladerampen.

plug-in conduit for alu loading ramp

The alu loading ramps are protected stored within the chassis frame. The plug-in conduits are part of the standard equipment at the TA 20051 XXL low-loader, made for alu loading ramps up to 3,75 m length. At the TA 11045 low-loader and the TA 13045 low loader alu loading ramps up to 3,2 m length can be carried.
